PRODUCT DESCRIPTION

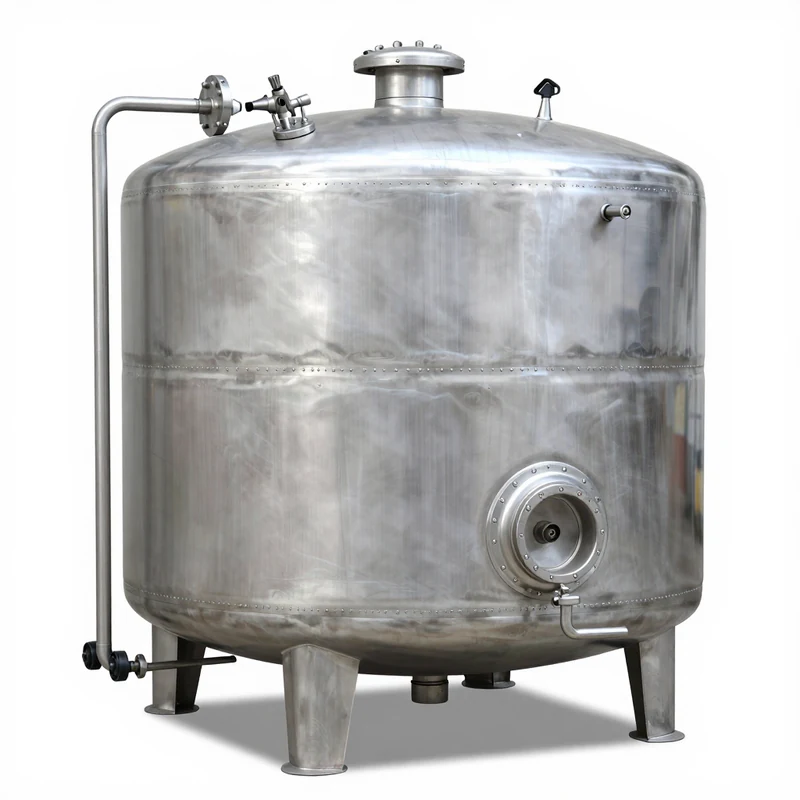

Custom Stainless Steel Water Tank & Fuel Tank Fabrication
ZEMSS fabricates custom stainless steel water tanks and fuel storage tanks at our 12,000㎡ Taiyuan facility. Each vessel is designed to your process requirements, fabricated from mill-certified plate, and inspected before shipment. Weld quality is verified by visual inspection, dye-penetrant (DP) testing, and hydrostatic pressure testing as standard. Radiographic (RT) or ultrasonic (UT) inspection is available for pressure-rated vessels.
Grade 304 is the standard specification for potable water, rainwater harvesting, and clean-product storage. Grade 316L is selected for fuel tanks, brine storage, seawater applications, and any liquid containing chlorides or organic acids where 304 would be at risk of pitting corrosion over the design service life.
Standard Configurations
| Configuration | Typical Capacity | Common Use |
|---|---|---|
| Vertical cylindrical | 500L – 200,000L | Water storage, chemical storage, process buffer tanks |
| Horizontal cylindrical | 500L – 50,000L | Fuel storage, underground tanks, skid-mounted systems |
| Rectangular / modular | 100L – 20,000L | Rooftop water tanks, confined-space installation, GRP panel alternatives |
| Sectional (bolted panel) | 2,000L – 500,000L | Large-volume site-assembled water reservoirs |
Fabrication Specifications
| Parameter | Standard Capability |
|---|---|
| Material Grades | 304 · 316L · 2205 Duplex (special corrosion environments) |
| Plate Thickness | 2mm – 30mm depending on capacity and pressure rating |
| Capacity Range | 100L – 200,000L (larger as multi-section site assembly) |
| Design Pressure | Atmospheric to 1.6 MPa (higher on enquiry) |
| Design Code | ASME VIII Div.1 · PED 2014/68/EU · GB 150 (China national standard) |
| Nozzles & Connections | Inlet / outlet / vent / drain / manhole / level gauge / pressure gauge — to ASME B16.5 or custom spec |
| Internal Surface | 2B mill finish · mechanically polished Ra ≤ 0.8µm · electropolished (pharma/food) |
| External Options | No.4 brushed · insulation jacketing (mineral wool + SS cladding) · painting (if specified) |
| Weld Inspection | Visual + DP test standard · RT / UT on request · hydrostatic test |
| Lead Time | 20–45 calendar days from confirmed drawing and purchase order |
Key Capabilities
- Design-to-fabrication service — If you have process parameters (capacity, pressure, temperature, media, nozzle locations) but no detailed drawing, our engineering team will design the vessel to your specification and submit a GA drawing for approval before fabrication begins.
- Pressure vessel compliance — Vessels designed and fabricated to ASME VIII Div.1 or PED 2014/68/EU. Hydrostatic test and documentation package supporting CE marking or ASME stamping available on request.
- Insulated jacketed tanks — Double-wall stainless jacket or mineral wool insulation with stainless cladding. Maintains product temperature in cold-chain, heated-process, or outdoor exposure installations.
- Skid-mounted systems — Tank assembled on a stainless or painted carbon steel skid with associated pipework, valves, pump connections, and instrument nozzles. Site-ready package reduces installation time.
- Full documentation package — MTR, weld map, inspection records, pressure test certificate, dimensional report, and manufacturer’s data report (MDR) for code-stamped vessels.
Applications
- Potable water storage — Rooftop water tanks, ground-level reservoirs, hospital and hotel water supply systems
- Industrial water systems — Fire suppression tanks, cooling water buffer, boiler feed water storage
- Fuel storage — Day tanks, diesel generator fuel tanks, aviation fuel storage in 316L or 304
- Chemical storage — Acid buffer tanks, alkali storage, reagent holding vessels (grade selected for media)
- Food & beverage — Ingredient storage, fermentation tanks, blending tanks, CIP solution tanks
- Agricultural — Fertiliser concentrate storage, irrigation buffer tanks, pesticide mixing vessels
Why Source from ZEMSS
- One-stop fabrication — Plate sourced, cut, rolled, welded, inspected, and documented at one facility. No sub-contracting or re-shipping risk.
- Engineering support — In-house design team for vessels without drawings. GA drawing submitted for client approval before fabrication begins.
- ISO triple certification — ISO 9001 / 14001 / 45001, certified by China Classification Society (CCS), IAF-recognised.
- MOQ 1 unit — Single prototypes and small batches accepted on the same production line as volume orders.
- Export experience — Regular shipments to Europe, North America, and Southeast Asia. FOB Tianjin, CIF, or DDP available on enquiry.
How to Order
To prepare your quotation, provide the following information:
- Fluid / media to be stored (determines grade selection)
- Required capacity (litres or m³)
- Configuration: vertical, horizontal, or rectangular
- Operating pressure and temperature
- Nozzle locations and sizes (or defer to our engineering team)
- Internal surface finish required
- Design code: ASME VIII, PED, or atmospheric (no code)
- Drawing if available — or process data sheet for design-to-fabrication service
- Quantity and destination port
We respond with a quotation and lead time within 2 business hours during UTC+8 working hours.
