PRODUCT DESCRIPTION

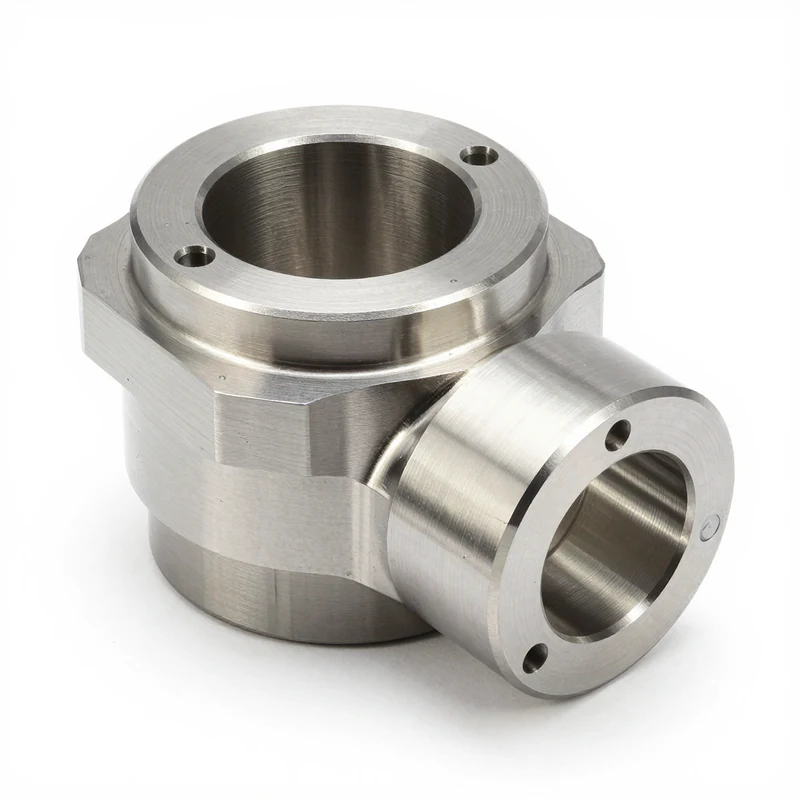

Custom Stainless Steel Machinery Components — Fabrication & CNC Machining
ZEMSS manufactures custom stainless steel machinery components and structural parts for food processing machinery, chemical process equipment, pharmaceutical manufacturing systems, and general industrial applications. Components are fabricated from mill-certified bar, plate, tube, and pipe stock, then machined, welded, or formed to your drawing at our 12,000㎡ Taiyuan facility.
Grade selection follows your application: 304 for standard food contact and industrial environments, 316L for chemical resistance or pharmaceutical GMP, 2205 duplex for higher-strength structural parts, and 17-4PH precipitation hardening stainless for components requiring high tensile strength combined with corrosion resistance. Each component ships with a dimensional inspection report confirming conformance to your drawing and an MTR tracing material to the original mill heat.
Component Types
| Component Type | Processes | Typical Industries |
|---|---|---|
| Shafts & Spindles | Turning, grinding, keyway milling, thread cutting | Food conveyors, pump drives, mixing systems |
| Flanges & Nozzle Assemblies | Turning, facing, drilling, thread tapping | Process piping, vessel connections, chemical equipment |
| Brackets & Gussets | Laser cutting, bending, welding, drilling | Equipment mounting, pipe support, structural framing |
| Housings & Covers | Laser cutting, bending, welding, CNC milling | Pump housings, gearbox covers, inspection hatches |
| Conveyor Components | Tube cutting, bending, welding, polishing | Food & beverage production lines, pharmaceutical conveyor |
| Impellers & Agitators | Laser cutting, bending, welding, balancing | Mixing vessels, reactors, CIP tank agitators |
| Structural Frame Assemblies | Cutting, welding, grinding, hole-drilling | Machine frames, equipment skids, support structures |
| Replacement Parts | Reverse engineering from sample or drawing | All industries — existing machinery maintenance |
Fabrication Specifications
| Parameter | Standard Capability |
|---|---|
| Grades | 304 · 316L · 2205 Duplex · 17-4PH · 410 · 321 · 904L (on enquiry) |
| Drawing Inputs | DWG · DXF · STEP · STP · IGES · PDF · Dimensioned sketch · sample part (reverse engineering) |
| Machining Tolerance | ISO 2768-m (medium) standard · ISO 2768-f (fine) on request · IT6–IT11 |
| Surface Finish | Ra 0.4–6.3µm depending on process. Mechanically polished or electropolished on request. |
| Max Part Size | Up to 3,000mm longest dimension (fabricated) · Up to 500mm diameter (CNC turning) |
| Welding | TIG · MIG · SAW (for heavy structural). All to WPS qualified per ASME IX or ISO 15614. |
| NDT / Inspection | Visual · DP test · dimensional inspection report (to drawing) · CMM on request |
| Lead Time | 15–40 calendar days depending on complexity, material grade, and quantity |
Key Properties
- One supplier for full part lifecycle — Raw material sourcing, cutting, machining, welding, grinding, polishing, and inspection performed at one facility. Eliminates sub-contractor quality variation and reduces lead time versus multi-vendor procurement.
- Reverse engineering capability — Send us a worn or broken part, a photo with key dimensions, or any available documentation. Our team will measure the part, produce a working drawing for your approval, and quote from that. Common workflow for replacement parts on existing food, chemical, or pharmaceutical equipment.
- GMP-compliant surface finishes — Mechanically polished (Ra ≤ 0.8µm) and electropolished (Ra ≤ 0.25µm) finishes available for pharmaceutical and food direct-contact parts. Surface roughness certificates provided on request to support equipment qualification (IQ/OQ).
- High-strength grades for demanding applications — 17-4PH in H900 condition achieves UTS ≥ 1,310 MPa with good corrosion resistance. 2205 duplex provides approximately twice the yield strength of 316L. Both are available for shafts, pins, and structural components where standard austenitic grades are size-limited by strength.
- Qualified weld procedures — All welding performed to written WPS (Welding Procedure Specifications) qualified per ASME Section IX or ISO 15614. Welder performance qualification records maintained and available for customer review.
Applications
- Food machinery — Conveyor frames, product contact components, mixing shafts, slicing and cutting machinery parts in 304 or 316L
- Pharmaceutical manufacturing — GMP-compliant machined parts, agitator shafts, vessel internals, and transfer line components in electropolished 316L
- Chemical process equipment — Impellers, pump shafts, valve bodies, and structural components in 316L, 2205, or 904L depending on media
- Beverage production — Filler components, conveyor guides, product contact parts, and CIP system fittings
- General machinery — Custom brackets, housings, frames, and structural assemblies for OEM equipment manufacturers
- Replacement & maintenance parts — Reverse-engineered parts for existing production lines — faster than OEM re-order lead times in many cases
Why Source from ZEMSS
- Complete in-house capability — Material sourcing, laser cutting, CNC machining, bending, rolling, welding, polishing, and dimensional inspection under one roof. No sub-contracting.
- MOQ 1 piece — Prototypes and single replacement parts fabricated on the same production line as volume orders. Same quality control. No minimum quantity surcharge.
- ISO triple certification — ISO 9001 / 14001 / 45001, certified by China Classification Society (CCS), IAF-recognised.
- Qualified welding procedures — ASME IX / ISO 15614 qualified WPS on file. Welded assemblies suitable for pressure-retaining and structural applications.
- Export experience — Regular shipments to Europe, North America, and Southeast Asia. FOB Tianjin or EXW Taiyuan.
How to Order
To prepare your quotation, provide the following information:
- Grade: 304, 316L, 2205, 17-4PH, 410, or other
- Drawing file: DWG, DXF, STEP, PDF — or sample part for reverse engineering
- Quantity per part number
- Dimensional tolerance class: ISO 2768-m or 2768-f (or per drawing)
- Surface finish: as-machined, polished (Ra ≤ 0.8µm), or electropolished (Ra ≤ 0.25µm)
- Weld inspection required (visual / DP / NDT)
- Destination port and Incoterm (FOB / EXW)
We respond with a quotation and lead time within 2 business hours during UTC+8 working hours.
