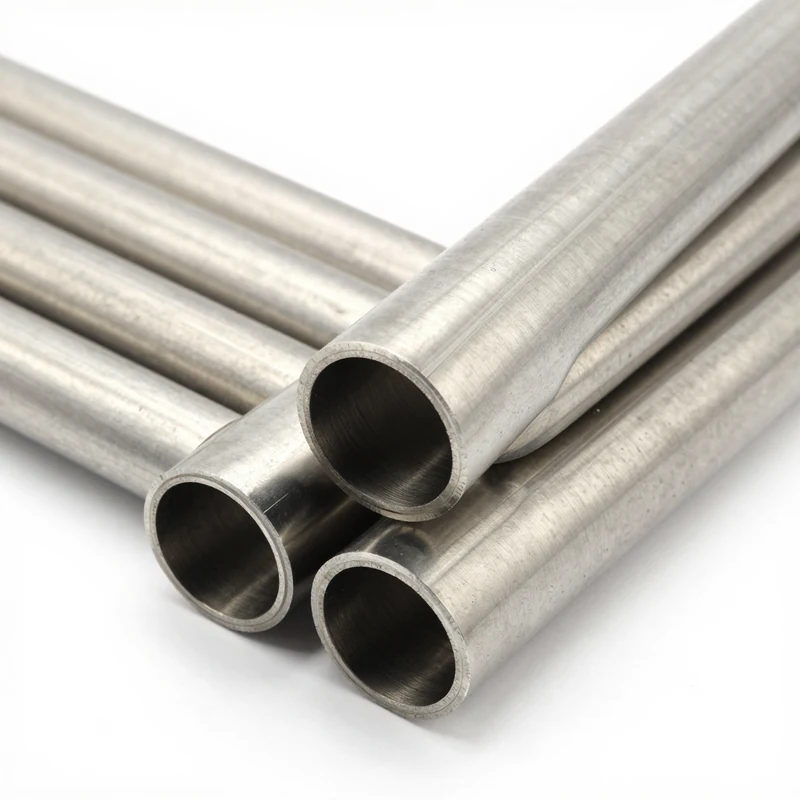

Sanitary Stainless Steel Tube

Sanitary-grade stainless steel tube for food, dairy, beverage, and pharmaceutical process lines. Available in 304 and 316L. OD 25.4–219.1mm, wall 1.5–3mm. Conforms to DIN 11850 / ISO 1127 / 3-A. Internal surface EP, BA, or Ra ≤ 0.8µm electropolished. Tri-clamp ends, plain ends, and custom lengths available.

MOQ: 1 length or from 10 metres
Mill test report (MTR) + surface roughness certificate included
ISO 9001 / 14001 / 45001 certified facility
Lead time: 7–20 days depending on OD, wall, and surface spec

<!–

Inquire About This Product

Description
Reviews (0)

PRODUCT DESCRIPTION

Sanitary Stainless Steel Tube — Food, Dairy & Pharmaceutical Grade

ZEMSS supplies sanitary-grade (hygienic) stainless steel tube manufactured to DIN 11850, ISO 1127, and 3-A Sanitary Standards. Tubing is produced by TIG welding and drawn to achieve a smooth, crevice-free internal surface that meets CIP (clean-in-place) and SIP (sterilise-in-place) process requirements. Available in 304 for standard food and beverage lines, and 316L for pharmaceutical, dairy, and any application in contact with aggressive cleaning chemicals or chloride-bearing media.

Internal surfaces are supplied to Ra ≤ 0.8µm (mechanically polished), Ra ≤ 0.4µm (BA finish), or Ra ≤ 0.25µm (electropolished) to match GMP process specifications. Each length ships with an MTR and, on request, a surface roughness measurement certificate.

Product Specifications

Parameter	Specification
Grade	304 (UNS S30400) · 316L (UNS S31603)
Standard	DIN 11850 · ISO 1127 · 3-A Sanitary Standards · SMS 3008 · BS 4825
OD Range	25.4mm – 219.1mm (1″ – 8″ nominal)
Wall Thickness	1.5mm · 2.0mm · 2.6mm · 3.0mm (to standard)
Length	Standard 6,000mm · custom cut available
Weld Type	TIG-welded, full-bore internal weld bead removed
Internal Finish	Ra ≤ 0.8µm (mech. polish) · Ra ≤ 0.4µm (BA) · Ra ≤ 0.25µm (EP)
External Finish	No.4 brushed · BA bright · Ra ≤ 0.8µm
End Finish	Plain cut · Tri-clamp (ISO 2852 / 3-A) · Butt-weld bevel · Threaded
MOQ	From 1 length (6m) or 10 metres total
Lead Time	7–20 days depending on OD, wall, and surface specification

Surface Finish Options

Finish	Internal Ra	Typical Application
Mechanically Polished	≤ 0.8µm	Food, beverage, dairy — standard CIP process lines
BA (Bright Annealed)	≤ 0.4µm	High-purity dairy, brewing, nutraceutical
Electropolished (EP)	≤ 0.25µm	Pharmaceutical GMP, biotech, sterile manufacturing

Key Properties

CIP/SIP compatible — Smooth, crevice-free internal bore with full weld penetration. Internal bead is removed to prevent product retention. Compatible with caustic, acid, and steam sterilisation cycles.
Full traceability — Heat number and material grade stamped on each length. MTR from the original mill confirming composition and mechanical properties to DIN 11850 or ISO 1127.
GMP-ready documentation — Surface roughness measurement certificates available on request. Supports pharmaceutical qualification (IQ/OQ) documentation packages.
316L for critical lines — Molybdenum content (2–3%) provides superior resistance to chloride pitting and acidic cleaning chemicals (HNO₃/H₃PO₄ CIP cycles). Preferred for final product contact surfaces in pharmaceutical and dairy.
Tri-clamp compatible — Ends machined to ISO 2852 / 3-A tri-clamp ferrule dimensions as standard option. Enables rapid, tool-free disassembly for hygienic inspection and cleaning.

Applications

Dairy — Milk, cream, and whey transfer lines; pasteuriser tube circuits; CIP return pipework
Brewing & beverage — Wort transfer, bright beer lines, carbonation piping, juice processing
Food processing — Sauce, paste, and liquid food transfer; hygienic manifolds; jacketed process piping
Pharmaceutical — WFI (water for injection) distribution, sterile bulk transfer, bioreactor connections
Cosmetics & personal care — Hygienic product transfer where contamination control is required
Chemical — Corrosive chemical transfer lines where smooth bore reduces fouling and pressure drop

Why Source from ZEMSS

Mill-direct traceability — Tube sourced from certified mills. MTR and surface roughness certificates provided as standard or on request.
One-stop supply — Tube, fittings, elbows, and custom fabricated assemblies from the same facility. Reduce vendor count and re-shipping risk.
ISO triple certification — ISO 9001 / 14001 / 45001, certified by China Classification Society (CCS), IAF-recognised.
Custom lengths and end prep — Cut-to-length, tri-clamp ends, bevel ends, and polished bore sections machined to your drawing.
Export experience — Regular shipments to Europe, North America, and Southeast Asia. FOB Tianjin or EXW Taiyuan standard terms.

How to Order

To prepare your quotation, provide the following information:

Grade: 304 or 316L
Standard: DIN 11850, ISO 1127, 3-A, or BS 4825
OD × Wall thickness (mm or inch nominal)
Internal surface finish: Ra ≤ 0.8 / ≤ 0.4 (BA) / ≤ 0.25µm (EP)
End finish: plain, tri-clamp, bevel, or threaded
Quantity (lengths or total metres)
Destination port and Incoterm (FOB / EXW)

We respond with a quotation and lead time within 2 business hours during UTC+8 working hours.
